Description

Only kit sent with compressor whips!

Attention!! If your vehicle is not in variations, request the correct link.

ATTENTION: It doesn't fit any car. As this kit requires personalized measures for installation and better efficiency, you need to confirm with us the model of the vehicle to be installed. Do not buy without first confirming if it is compatible with your vehicle.

** In vehicle that uses diesel engine, this kit does not serve. **

We have another kit with large condenser + 02 larger fans for this purpose, follows the correct link:

https://produto.mercadolivre.com.br/MLB-3503002223-kit-ar- CONDITIONA-ELETRICA-2-Ventoininhas-condensador-grande-_JM
.

** Single PWM Compressor Inverted Duly registered in Brazil with INPI - Kit with warranty 20,000 BTU Real and washable cabin filter included **

The 5th Generation of Semi Hermetic Electric Compressors of Technoauto®. It has an exclusive module embedded in the compressor, or the slim + microprocessor with advanced equipment self-diagnostic system.

Original Kit from Technoauto® - Company specialized only in Air Conditioning Kit all over Brazil - the only Official Store certified by the Free Market in the field, as well as Gold Leader Market

Application:
Cars, with 12V or 24V gasoline engines - inform vehicle and voltage in the message field, after purchase, so that the pieces are sent in personalized size !!

ATTENTION:
In a 12V kit it is necessary to change the battery for a new one with 90 amps, at least, so that the compressor reaches the rotation required to freeze. Used battery does not support consumption and does not freeze.

*Accompanies compressor and system oil*

Compress through helical spirals - state -of -the -art technology. The module sends 12V or 24V in with PWM inverter pulse width modulation, which increases the RPM, reaching high rotation uniformly and stabilizing rotation control, without oscillation, even under voltage variations, Hi Tech - Latest -generation embedded automotive technology, so it is the best in power and life time. Technoauto® exclusive system, currently the best in the market.

EXCLUSIVE TECHNOAUTO® ELECTRICAL COMPRESSOR AND THE MODERN 2024 EVAPORATOR BOX WITH WASHS CABIN FILTER

Refuse imitations of A/C False - Value your money

ATTENTION:
Advantages when purchasing an original kenoauto® kit:

- Company specializing in automotive air conditioning kit;
- Installation Manual with the schemes;
- We are the only official store certified by the Free Market in the air conditioning kit business
- Company verified and with audit approved by Complain Here;
- Post-sales and technical support directly to your installer without the need for buyer intervention;
- Product registered by the Technoauto® brand with INPI;
- Project registered and filed in CREA and CONFEA;
- Green Seal in Original Project as Green Technology - Green It - CO2 emission Reduction
- Longer useful life
- Do not fall into the blow of companies that sell and exclude their registrations and disappear before the warranty period
- Guarantee that they freeze, because they are tested before they are approved
- Company that enjoys good reputation in the market for more than 30 years
- Pioneer company that sells the original and authentic kit since 2010

Real product photo

ABNT NBR 15.629, efficiency, the entire vehicle, providing greater technical and legal security. Cutting edge technology.

Confira a relação dos componentes no campo "Description".

We only work with new stock - Fully Modern System Version 2024.

ATTENTION: O sistema SÓ trabalha com óleo de alta performance, que já acompanha o kit. NUNCA MISTURE OUTRO TIPO DE ÓLEO!

Our kit is the only one that does not generate high pressure even after the engine warms up.
Vital parts such as compressor, condenser, evaporator and fan are already modern and you will be purchasing an original product with longer life.


Say no to piracy !!!

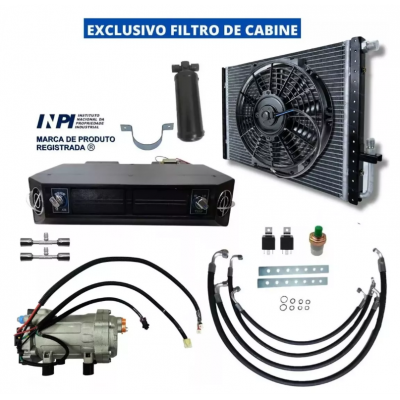

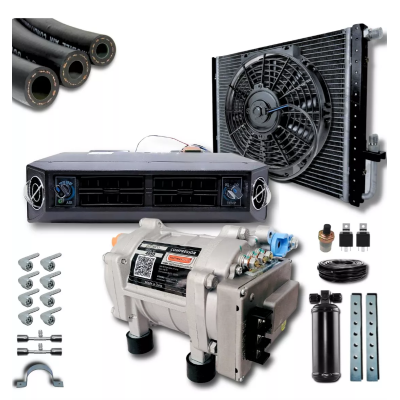

Components:

- Compressor oil and the whole system

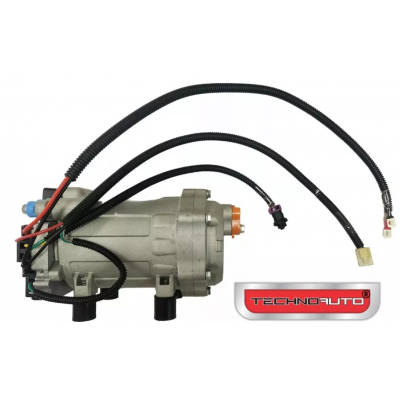

- TECHNOAUTO® Electric Compressor

- Ventoinha auxiliar de alta rotação à prova d'água Technoauto®

- BINARY PRESSURE TECHNOAUTO®

- Dissecting dryer filter with a transparent gas display and pressure output

- 02 amendments with valve or 02 Fit block connections with technoauto® valve

- Technoauto® filter support

- Moderno® Modern Evaporator Box - Version 2024 with washable cabin filter

- Capill Tech expansion valve (free 30% more than old)

- Parker hose game or equivalent: 2 of 6; 1.5 of 8 and 1.6 of 10

- MULTFLOW TECH Condenser larger number of cooling fins and higher thermal dissipation capacity

- 02 Supports of the TechnoAuto® condenser

- Connections with Technoauto® Anti-Vibration clips

- Support of the favors technoauto®

- All terminals with clips technoauto®

- Electrical material with whip contained in the Evaporator box and compressor Technoauto®

- Technoauto® relay with the terminals


Technical Specifications:

Noise level: 30 decibels

Voltage: 12 or 24 volts

Type of soda gas: Suva R-134A Ecological

Gas load: 450 to 550 grams

Oil Type: Electric Compressor Specific - Included

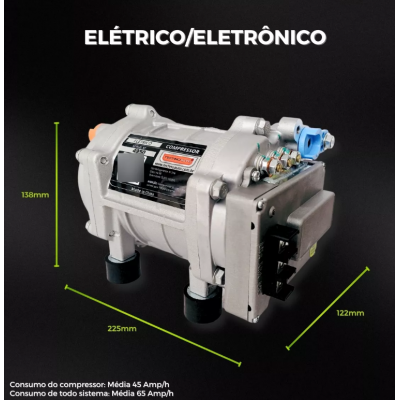

Compressor: Scroll rotary, without pistons or cylinders, with helical spirals and 12V or 24V in inverter for PWM pulse width modulation, exclusive system technoauto

AMPERAGE: 40 AMP/H

Condenser: Multi Flow Tech designed not to generate high pressure in the system, with more cooling fins and greater thermal dissipation

Eletro Ventiladores (ventoinhas): 2068 RPM; 6,8 Amp/h; mais de 30.000 horas de vida útil, à prova d'água e reversível

Hose: Norma SAE J2064_201508

Connections: 100% aluminum and anti-vibration

Evaporator: 100% aluminum with 20,000 BTU and washable cabin filter

PRESSURETATE: BINARY

ELECTRICAL EVAPORATOR BOX: WITH PROTECTION FUSE

Filtro secador: Dissecante - absorve a umidade do sistema e protege o compressor contra "Golpes de Líquido"


About our company:

Technoauto is a company with the brand of products registered with INPI. Its founders have a 30 -year tradition in the market following ABNT NBR 15629, elaborating projects and technological innovations in Air Conditioner Kit registered and filed in CREA by our engineer. Our products serve vehicles of all national and international brands present in the Brazilian market.

SELLER WARRANTY: 12 months
