Description

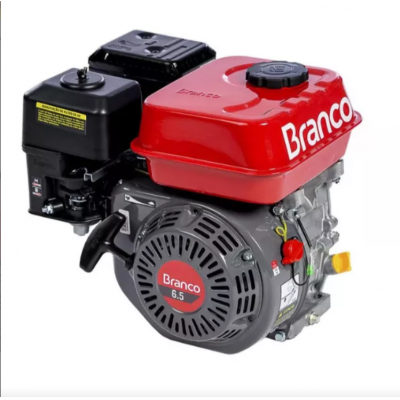

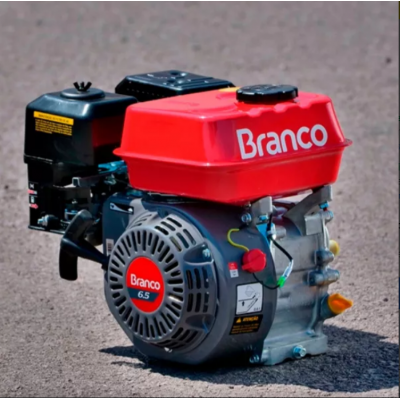

B4T 6.5 hp parking lot, white color, manual starting, 19.05mm axle, no oil alert.

Motor with automatic decompression, facilitating the start, single cylinder and gasoline -powered. Suitable for water pumps, tails, drive of construction equipment, among others.

Horizontal, single -cylinder engine, 4 stroke, air cooled
Manual start
Gasoline fuel type
Diameter (mm) 68
Course (mm) 54
Displacement (cm³) 196
Compression rate 8.5: 1
Maximum power 6.5 hp at 3600 rpm
Continuous power 5.5 hp at 3600 rpm
Maximum torque 1.35 kgfm at 2500 rpm
Electronic ignition
RAR ROTATION CONTROL
Weight (kg) 16
Splashing lubrication
Consumption (L/h) 1.70
Oil capacity (L) 0.600
Length (mm) 395
Width (mm) 335
Height (mm) 390
