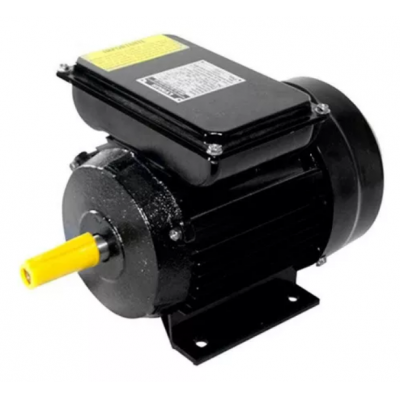

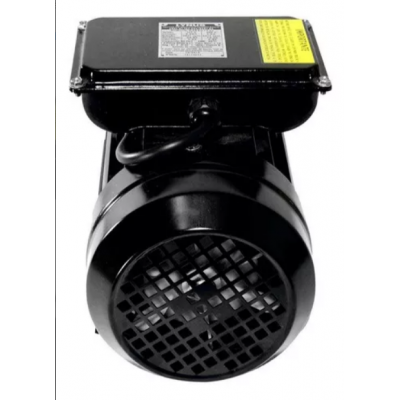

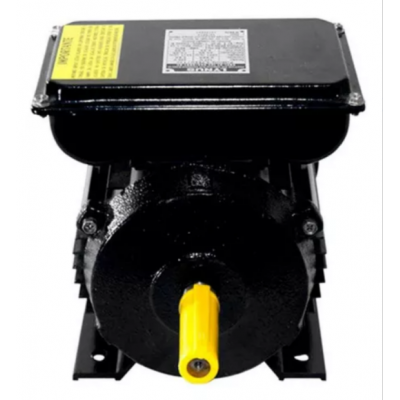

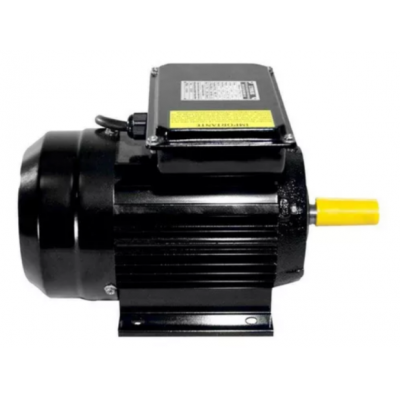

4p single-phase electric motor 3.0hp IP44 YL100L1-4 Lynus

Electric Motor 4 Single Poles 3.0hp IP44 YL100L1-4 00011268.1 Lynus
Suitable for compressors, metals, fans, forage, wooden, concrete concrete, drills, among others.
Degree of Protection: IP 44 According to ABNT NBR 60529 and IEC 60034-5.
Excellent choice for apply with dust and water splashes of all directions;
Constructive form: B3T according to ABNT/IEC 60034-7. The connection box on top facilitates the installation;
Isolation: Class B (130C);
Carcass: According to ABNT NBR 15623-1 and IEC 60072-1;

Technical data:
Model: YL100L1-4
Color: matte black
Code: 00011268.1
Power (kW) (CV): 2.0 | 3.0
Voltage (V) (non -automatic): 127/220
Carcass: 100L
N poles: 4 poles
Rotation (RPM): 1755
Freq. (Hz): 60
Service Factor (FS): 1.15
Nominal current at 220V: 14.0
Nominal torque (n.m): 11.8
Start/nominal (n.m): 2.1
Maximum/nominal (n.m): 2.6
MAX TIME.

Measures:
A: 160, B: 140, C: 56, D: 19.05, E: 57.1, F: 4.76, g: 16.3, h: 100, k: 12
AB: 205, AC: 220, AE: 130, HD: 260, L: 432.9
Front bearings: 6206 2rs

Brand: Lynus
REF: 00011268.1

* Illustrative merely images.
