Description

Complete Kit Motor Motor Bike Motorized 80cc

Frequent doubts:

MOTOR CONTEM "BOLINHAS NO CILINDRO" PARA ALTA PERFORMANCE

Engine screws are Allen key nº10

We have silver and black engines

Unified head

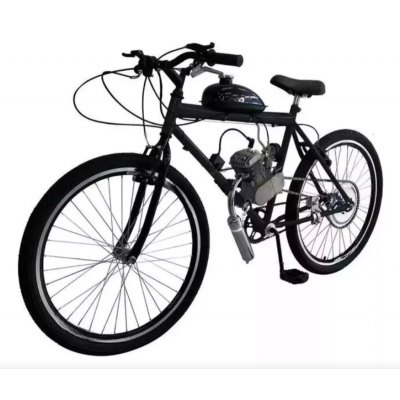

Bike engine kit to assemble and go out accelerating. 80cc engine, capable of climbing hills and reaching up to 60km/h.

The use of safety equipment is recommended to the user to ensure safety in the event of accidents.

- Specialized technical assistance.

# Care with your engine:

• This is a 2 -stroke engine, a mixture of gasoline and oil is required.
• Initial engine mixture: 60ml of 2 stroke oil for every 1 liter of gasoline (new engine) and 35ml of 2 stroke oil for each 1 liter of gasoline (after 500km).
• Engine softening time: 500km.
• The motor kit is easy to install for those with notions of mechanics.

• Maximum speed recorded around 50 km/h.
• Consumption varies between 35 and 50 km per liter.

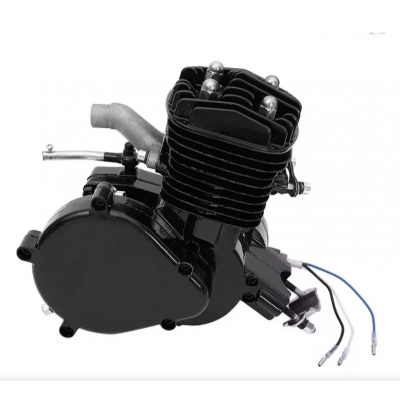

# Bike engine technical sheet:

• 44 teeth crown.
• 2 liters gasoline tank + stickers in the tank.
• Black color tank
• Motors available silver color.
• You need to measure the bike to find out if it has the minimum measures of 27cm high and 17cm wide between the frame.
• Weight limit 120kg
• Imported manufacture
• Accompanies installation manual in Portuguese
• Technical Assistance

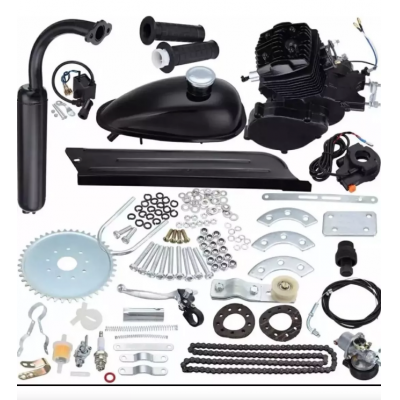

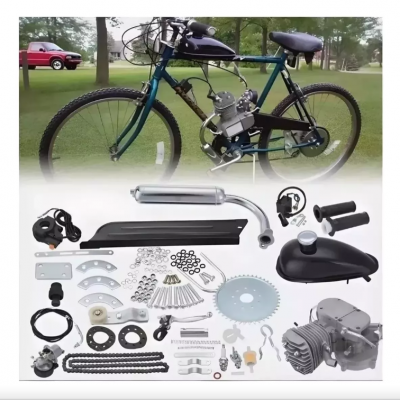

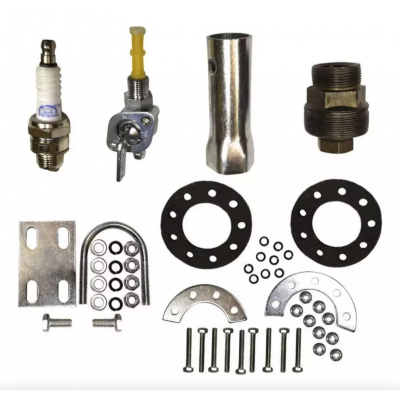

# Packaging Contents:
- Tank for 1.8 liters of gasoline;
- Current;
- Engine current protector;
- Current teaching;
- Crown fixation kit;
- Crown 44 teeth;
- Silver exhaust;
- Sailing key;
- Ignition candle;
- CDI;
- gas tap;
- gasoline hose;
- gasoline filter;
- Carburetor;
- accelerator;
- accelerator cable;
- clutch cable;
- clutch lever;
- U adapter for frames with thick tube;

Requirements
Aro: 24 inches or more
Quadro: Formato "V"
Assembly dimensions: 27 cm between the candle and upper foot
Bicycle application with disc brake: yes
Bicycle application with patim brake: no
Bike application with rear suspension: no
Bicycle application with front suspension: yes

*Illustrative photos*
