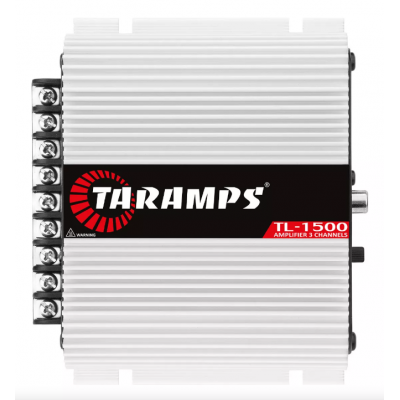

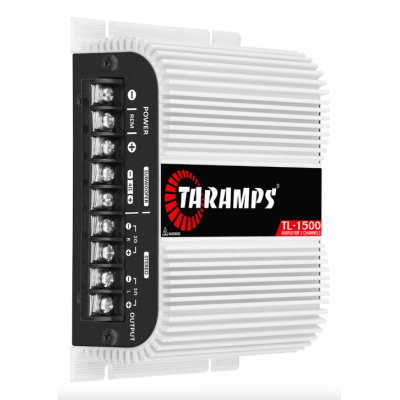

The TL 1500 Digital Amplifier Module of Taramps is designed to deliver high sound quality to automotive sound systems, whether original or customized. With 390 watts of power distributed in 3 channels, with 2 stereo channels with power of 95 watts RMS to 2 Ohms each, and 1 channel for subwoofers, which provides 200 watts RMS at 4 ohms.

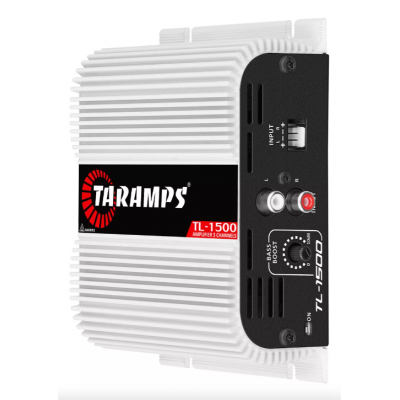

It has Bass Boost control to reinforce the bass, RCA inputs and wire input (A.R.T) that recognizes the presence of audio and triggers the amplifier automatically, exempting the use of the remote drive. It can be used to play subwoofer, woofer, horn, tweeter, middle, midbass, among others.
Its features are ideal for amplifying car speakers and car tampon, pickup trucks, pickups, SUV, 2-way, coaxial, triaxial, quadroxial, 4 inch, 6 inch, 6x9 inches, 5x7 inches, Trio, Trium box, bob boxes, residential kit, 6-track kit. between others.
TL 1500 Improving your automotive sound system with quality Taramps.
Technical Specifications:
• Operating class: Class d.
It is the indication of building an amplifier, class D (also called fingerprints) due to PWM (pulse width modulation) used in its operation, allows a small, efficient and reduced heating amplifier compared to other construction classes.
• Number of channels: 03.
Number of channels for use in your project. With this specific model, you have the connection option with 3 and 2 channels.
• Power @13.8V - 2 ohms, stereo: 2 x 95W rms.
The power, with a voltage of 13.8 volts, is related to the operation of the vehicle/power supply.
• Power @13.8V - 4 ohms sub: 1 x 200W rms.
The power, with a voltage of 13.8 volts, is related to the operation of the vehicle/power supply.

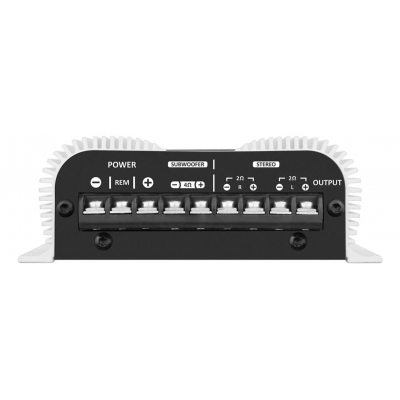

• Minimum stereo output impedance: 2 ohms.
Association with the result of speakers, where, for example, we can connect two 4 ohms speakers by channel for this result.
• Minimum output impedance for subwoofer: 4 ohms.
Association with the result of speakers, where, for example, we can connect on the 8 Ohms subwoofer channel, two 2 +2 Ohms-connected double-coil subwoofer in series and parallel, 1 2+2 Ohms Subwoofer-connected in series, 4 2+2 Ohms Subwoopher on series and parallels or just a 4 ohm subwoofer for This result.
• Minimum input sensitivity RCA: 320mv.
Lower voltage required for the maximum result with the amplifier, ie with little volume of the radio, we will already get good results.
• Minimum input sensitivity Wire: 6V.
Lower voltage required for the maximum result with the amplifier, ie with little volume of the radio, we will already get good results.
• Stereo frequency response: (Full Range): 90Hz to 30kHz (-3db).
With the frequency response, it is possible to identify the application of the amplifier, as well as the speaker or any other type of transducer you are using is understood within this answer, that is, that we can use this product on your project.
• Sub frequency response: 15hz to 90Hz with active frequency cut (-12db/8th).
With the frequency response, it is possible to identify the application of the amplifier, as well as the speaker or any other type of transducer you are using is understood within this answer, that is, that we can use this product on your project.

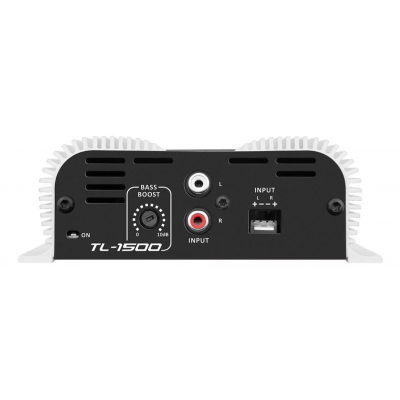

• Bass Boost: Adjustable from 0 to 10db @ 50Hz.
Bass boost é o reforço de graves para o canal sub do amplificador, ou seja, um reforço a "mais" para os graves.
• Power voltage: 9 to 16V.
It is the operating indication of the amplifier where it will have the minimum and maximum voltage for its operation, outside this specification it does not turn on or activates a protection.
• Consumption at rest: 0.75a.
This is the reference of consumption of the amplifier on and without music.
• Maximum musical consumption: @13.8VDC: 17.5a.
This is the estimate of consumption of the amplifier working on the minimum impedance, playing music with maximum volume.
• Maximum consumption in sine signal: 35a.
Reference for bench/laboratory tests under specific conditions with resistive load, fixed frequency and stable power supply.
• Protection System: Thermal and short at output.
This system exists to protect the functioning of the amplifier, it may be related to the output, when we have connections below the minimum impedance, a short circuit in the installation or even problem loudspeakers.
This protection may also happen due to voltages outside the operating range, or a thermal protection that occurs by conditions where the amplifier has above normal heating.
• Dimensions: Width 13.8cm x Height 4.9cm x Depth 12.1 centimeters.
Extreme dimensions of the product.
• Weight: 600 grams.
Gross amplifier weight.
Packaging Contents:
• 1 TL 1500 2 ohms amplifier module;
• Audio input connector by approximately 20 cm long;
• QR Code to download the manual;
• 1 Taramps adhesive.
Important:
We recommend that the installation be performed by a specialized professional and we are not responsible for the inappropriate use of the product.
Warranty: 12 months.
