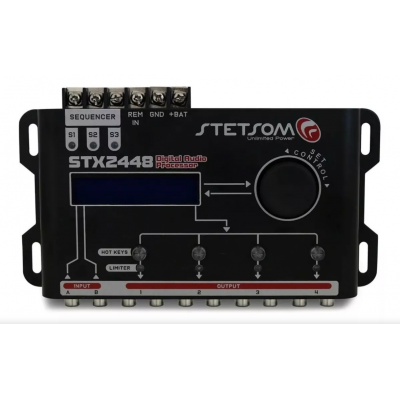

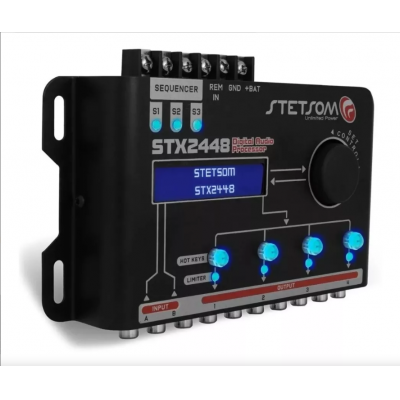

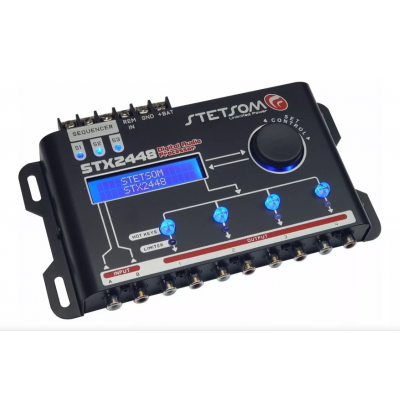

New Stetsom 2448 processor with sequencer (launch)
Description Digital Audio Processor Stetsom STX2448 4 Channels 4 Equalizer Stereo Outputs 10Hz to 22500Hz:
For quality automotive sound lovers, audio processors provide improved audio, reducing the amount of noise. The processors receive the signal from the device and improve the response curve so that the sound does not have so many ups and lows and exit according to its correct frequency.
This Stetsom STX2448 digital audio processor has 2 input channels and 4 output channels, 15 bands equalizer, with 12 equalization presets to make the sound more like your sound. It serves from the lowest, to the highest frequencies, with response from 10hz to 22.500hz and great sensitivity, so the sound becomes more audible and pleasant.
Technical Specifications:
- Number of input channels: 2
- Number of output channels: 4
- Input graphic equalizer: 15 bands, gain ± 12db, 12 presets of equalization
- Parametric Equalizer: Gain ± 12db (1 input + 1 per output) Factor Q 0.4 to 10.0
- Variable frequency crossover: butterworth 12/18/24/36/48 dB/8th; Linkwitz-riley 12/18/24/36/48 DB/8th
- Routing between inputs and outputs: A, B or A+B
- Delay: 0 to 8ms (275cm)
- Phase: 0 ° or 180 °
- Limiter: Threshold -24 to 0DB; Automatic Attack/Release
- Exit gain: -45 to +15db
- Master Level: 0 to 100%
- Save/load memory positions: 5 memory positions
- Safety: 4 -digit security password
- Audio generator: 10Hz to 22khz, level -60 to 0db
- Sweep: Freq. initial and final 10Hz to 22khz; Level -60 to 0db; Speed control.
- Screen protection: editable text with 15 positions
- Latency: 1.08ms
- Input impedance: 10k ohms
- Output impedance: 47 Ohms
- Relação Sinal Ruído: >90dB
- Harmonic distortion
- Total: <0,01%
- Separação de Canais: >80dB
- Frequency response: 10Hz to 22.5khz @ -1db
- Max. Input voltage: 4.5 VPP (+6.3 DBU)
- Max. Output voltage: 4.5 VPP (+6.3 DBU)
- Food: 10V to 15V DC
- Current consumption: 350ma @12.6V DC
- Approximate dimensions (a x l x c): 37 x 200 x 101mm
Packaging Contents:
- 1 digital audio processor
- 1 manual and warranty certificate
