What do you need to know about this product
Description

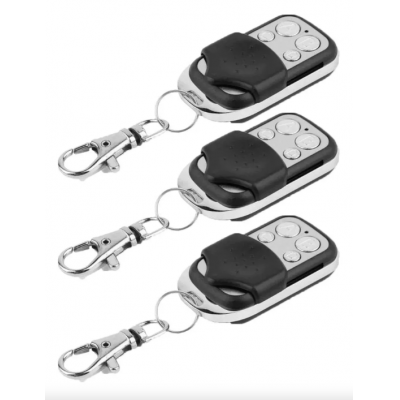

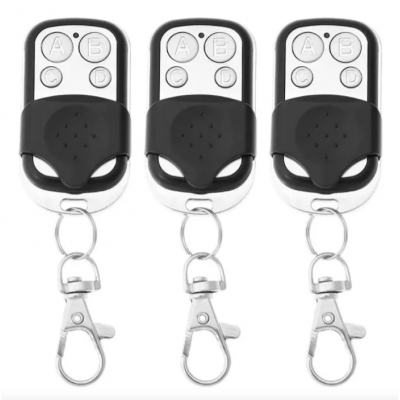

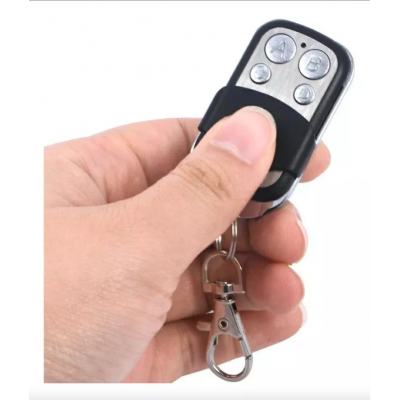

Kit with 3 Square Programmable garage garage garge controls - 433mhz
Programmable garage/garage control with 4 -buttable car alarm, automatic gate, rolling doors etc.
Settings:
1st Perform Control Reset:
Press the first two buttons until the LED flashes. Still pressing the first button, push the B button three times (note that all buttons will flash and stay off informing that they are clean).
2nd perform your control programming:
Keep both controls very close and press the button to the original control you want to program and then press the button on the programmer control you want to register. (Press until the LED starts to flash and keep pressed until the LED remains lit by showing that it succeeded).
NOTE: If the control does not work or any button has not been able to program the code, perform step one again and try to perform the schedule more than once.
Specification:
Material: Plastic.
Size: 55*28*14
Type: Wireless remote control.
Nominal voltage: 27A 12V battery (included).
Wireless transmission distance: 50-150 (m). (open space)
Operation Frequency: 433MHz
Model: HFY408g
Some compatible models:
PPA / SEG / RCG / UNISEG / Proter / Intelbras / Garen / Unisystem / Etc / Sulton / Compatec / JFL / Omega SAT / NBM / CLICK / IPEC / HOMBRUS / PISATRON CODE LEARNING
Compatible chips types:
2260 (PT2260, SC2260, LX2260, HX2260); 2262, (PT2262, SC2262, LX2262, HX2262, HX2262), PT2264, PT2240 (LX2240), 1527 (EV1527, HS1527, FP), FP, SM, SMC926, AX5026, AX5326-3, AX5326-4, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, PIC16F629, PIC16F630
Note: You cannot program Rolling Code (Rossi, Linear and Peccinin) systems.
